We recently installed an AV system at the Trafford Housing Trust in Salford, Greater Manchester. They wanted a way to host and present in their Bistro area which wouldn’t affect the functionality of the existing space.

Importantly the presentations had to be viewable from all areas of the room so we began with a Sapphire 2.4 metre retractable projection screen at the front of the room with the projector midway across the room for a 16:10 throw, which also retracts discreetly into the ceiling.

Conference meeting room installation - Trafford Housing Trust See-AV

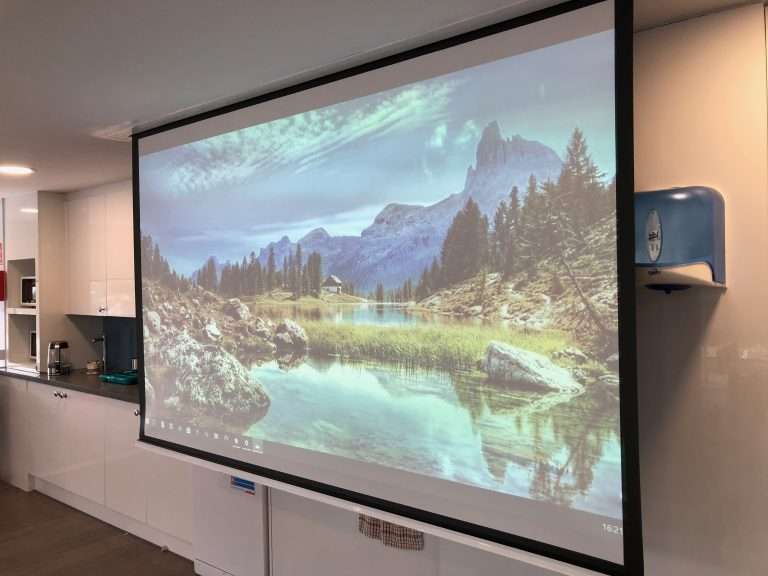

16:10 ratio screen – restracts into ceiling space

Conference meeting room installation - Trafford Housing Trust See-AV

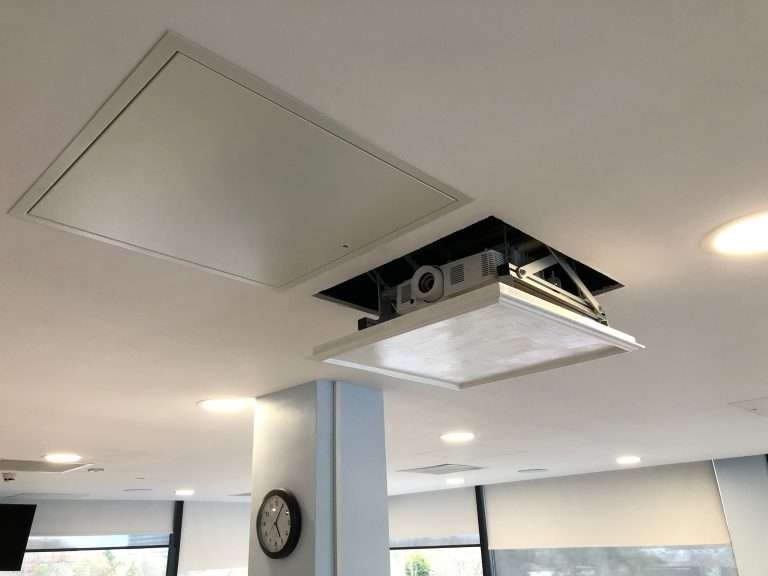

Optoma 4k projector on projector lift

To complement the main display we also installed two 49 inch 4k HDR Panasonic LED screens on either side of the room providing extended viewing for any participants towards the rear of the room.

Conference meeting room installation - Trafford Housing Trust See-AV

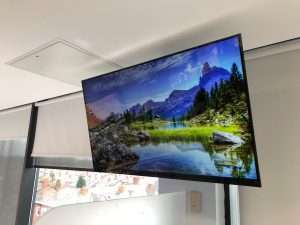

Panasonic 4k Ultra HD LED TV

Conference meeting room installation - Trafford Housing Trust See-AV

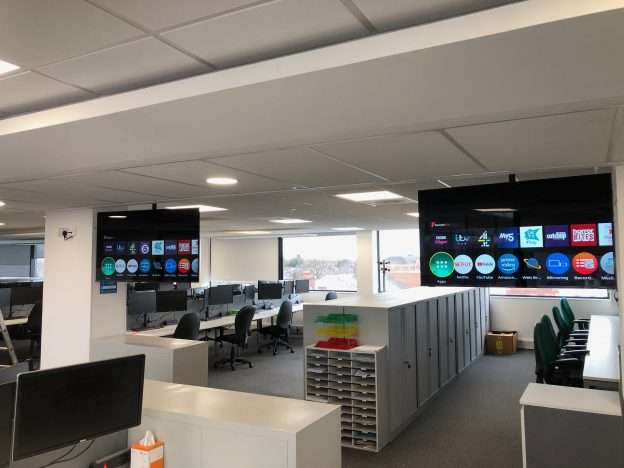

Panasonic UHD LED 4k display installation

For flexibility we installed two hdmi input points to allow the presentations to run from the front or mid point of the room. These input points ran through an HDMI matrix to split the signal to the main projection screen and the two left and right 4k screens.

Conference meeting room installation - Trafford Housing Trust See-AV

HDMI input

2 wireless hand held mics were used for room amplification reinforcement outputting through 4 100v ceiling speakers positioned for optimum sound reproduction.

Conference meeting room installation - Trafford Housing Trust See-AV

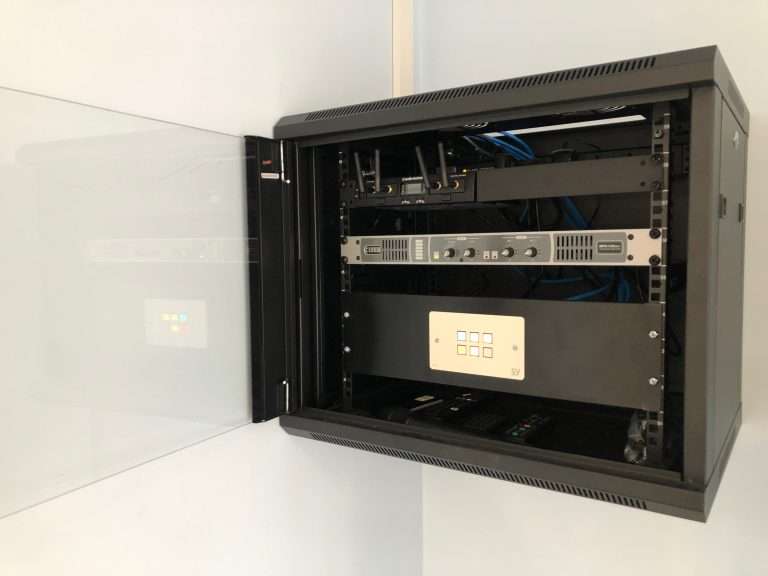

Room Control System

For operation of the system we build a dedicated rack housing the mic receivers, amplifier and simple button control panel programmed to switch on the room system, lower and raise the projector and projection screen and switch to the desired signal input channel.
